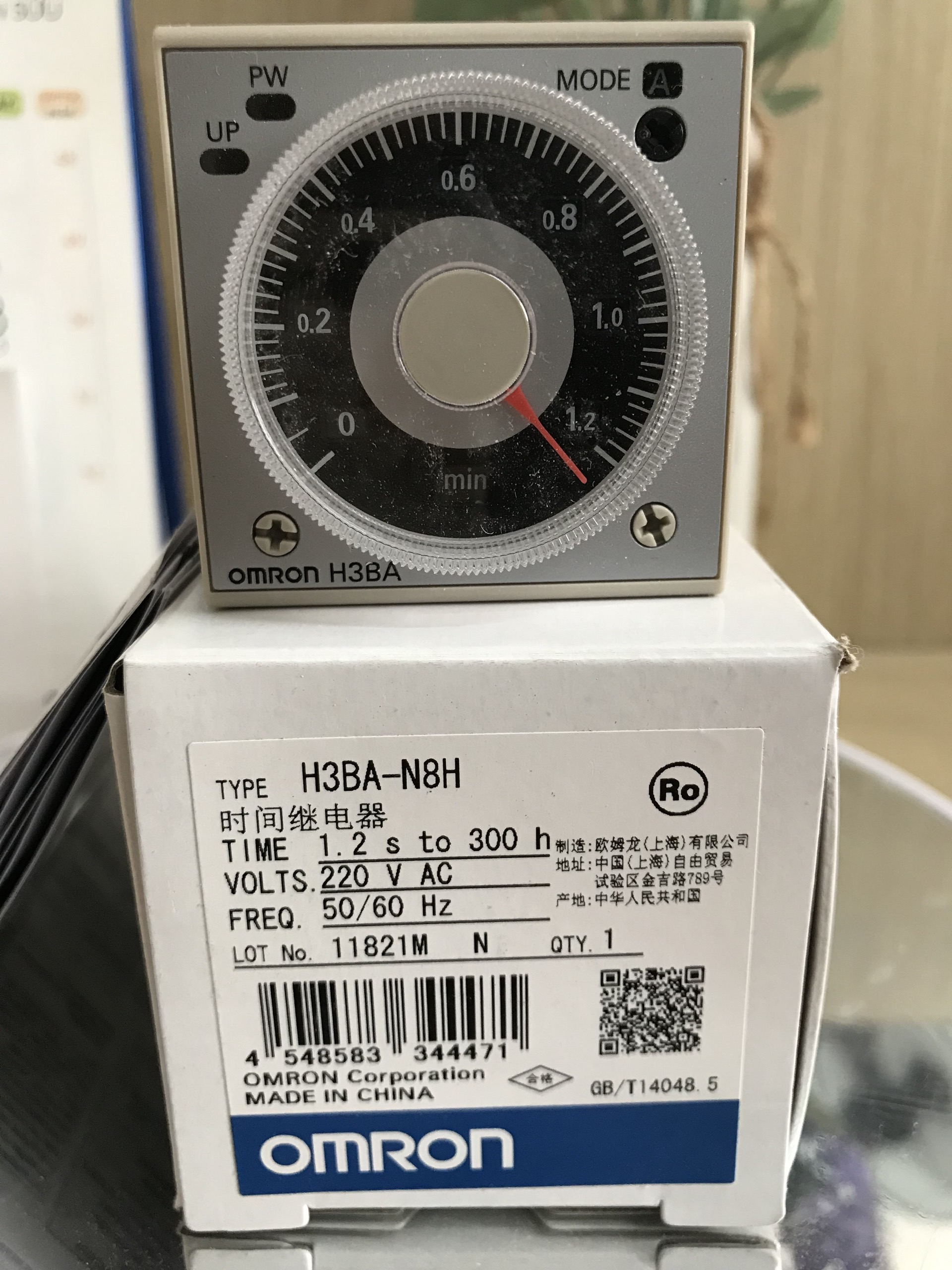

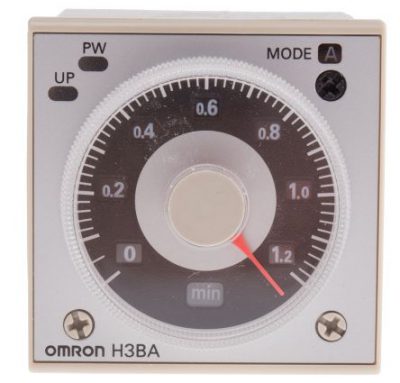

H3BA-N8H rơ le thời gian 48x48mm giá rẻ
H3BA-N8H rơ le thời gian 48x48mm giá rẻ
H3BA Solid State Timer, 11 Pin
The H3BA series solid state timers have multiple-time ranges and multiple-operating modes.
8 pin models benefit from 2 possible functions of either on-delay or on-delay with instantaneous output contact.
11 pin models have 6 possible functions of either on-delay, flicker off start, flicker on start, signal on/off delay, signal off delay and interval.
Operating temperature range: -10 to +55 °C
| Attribute | Value |
|---|---|
| Supply Voltage | 110 V ac |
| Time Range | 0.05 s → 300 h |
| Mode of Operation | ON Delay |
| Mounting Type | Flush Mount, Panel Mount |
| Number of Timer Functions | Single |
| Number of Contacts | 1 |
| Series | H3BA |
| Time Increment | Hours, Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | SPDT |
| Current Maximum | 5 A |
| Terminal Type | PCB Pin |
| Minimum Voltage | 100 V ac |
| Maximum Voltage | 240 V ac |
| Maximum Operating Temperature | +55°C |
| Width | 48mm |
| Switch Configuration | SPDT |
| Depth | 93mm |
| Time Delay | 0.1 (Reset) s |
| Minimum Operating Temperature | -10°C |
| Length | 48mm |
